In my Django App someone uploads an image, makes a box selection, clicks the button crop and the image inside the box is cropped using fengyuachen Cropperjs. I want to pass the cropped image to an OCR (in my case I use Pytesseract. I had two independent apps (one for cropping and one for OCR and both works. Now, I want to join them). So, my questions is :
How can I pass the cropped Image to the form input that is used by pytesseract to extract the information? I’m new to Javascript so I’ve been struggling with it.
HTML AND JS CODE
<html>
<head>
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/cropperjs/1.5.11/cropper.css">
<script src="https://cdnjs.cloudflare.com/ajax/libs/cropperjs/1.5.11/cropper.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/2.1.1/jquery.min.js"></script>
</head>
<body>
<h1>Upload Image to Crop</h1>
<input type="file" name="image" id="image" enctype="multipart/form-data" multiple="true" onchange="readURL(this);" />
<div class="image_container">
<img id="blah" src="#" alt="your image" height="600px" width="600px" />
</div>
<!--<div id="cropped_result" ></div>-->
<button id="crop_button">Crop</button>
{% if ....%} <!-- I am getting multivalue key error, there has to be and if statement here I think)
<!-- Cropped image passes to the OCR-->
<form method="post" enctype="multipart/form-data" >
{% csrf_token %}
<input type="submit" value="Send to OCR" name="cropped_result" >
<div class="row">
<div id="cropped_result" >
</div>
</form>
<p><textarea name="dataPath" >{{k}}</textarea></p>
{% endif %}
<!-- JS section -->
<script type="text/javascript" defer>
function readURL(input) {
if (input.files && input.files[0]) {
var reader = new FileReader();
reader.onload = function (e) {
$('#blah').attr('src', e.target.result)
};
reader.readAsDataURL(input.files[0]);
setTimeout(initCropper, 1000);
}
}
function initCropper(){
var image = document.getElementById('blah');
var cropper = new Cropper(image, {
aspectRatio: NaN,
crop: function(e) {
console.log(e.detail.x);
console.log(e.detail.y);
}
});
// On crop button clicked
document.getElementById('crop_button').addEventListener('click', function(){
var imgurl = cropper.getCroppedCanvas().toDataURL();
var img = document.createElement("img");
img.src = imgurl;
document.getElementById("cropped_result").appendChild(img);
})
}
</script>
</body>
</html>
Django view used for the OCR
from django.shortcuts import render
from django.core.files.storage import FileSystemStorage
from PIL import Image
import pytesseract
import os
import csv
def predictImage(request):
fileObj = request.FILES['cropped_result']
fs = FileSystemStorage()
filePathName=fs.save(fileObj.name , fileObj)
filePathName=fs.url(filePathName)
testimage = '.'+filePathName
k=pytesseract.image_to_string(Image.open(testimage))
context = {'filePathName':filePathName,'k':k}
return render(request,'crop.html',context)

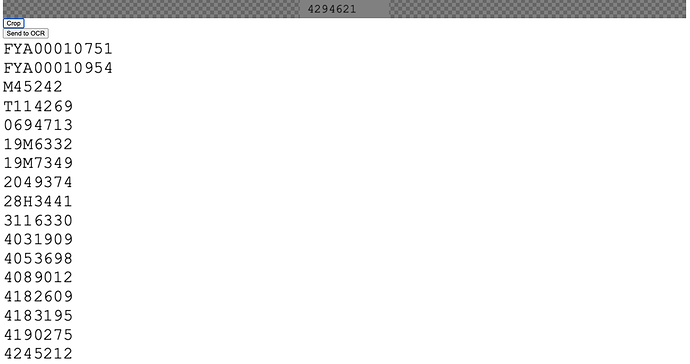

I think these images could help (I’m new so I can only upload one). On the first one I show that the Cropper is working and the pic shown under is the cropped image. These is what I have so far
“Someone” would click on the button Send to OCR and then Django Views recieves the input
Thanks!
